Description

Features:

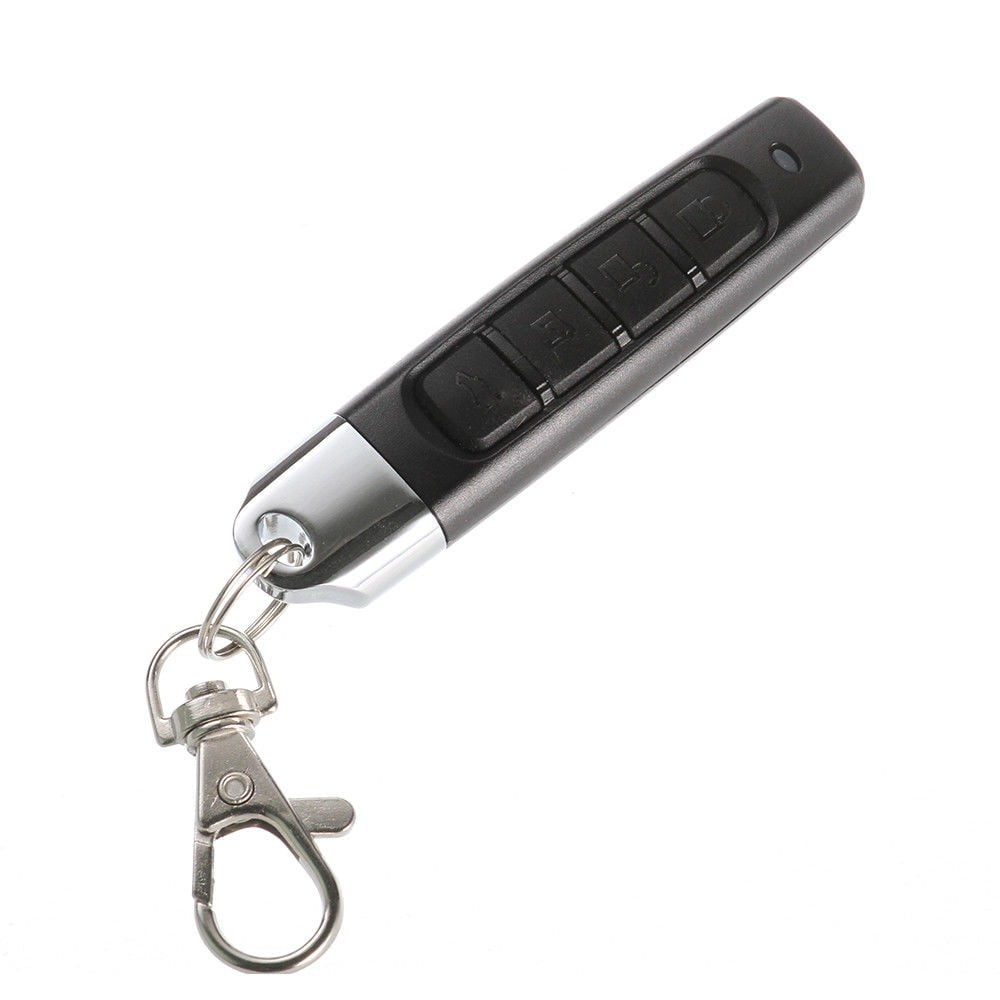

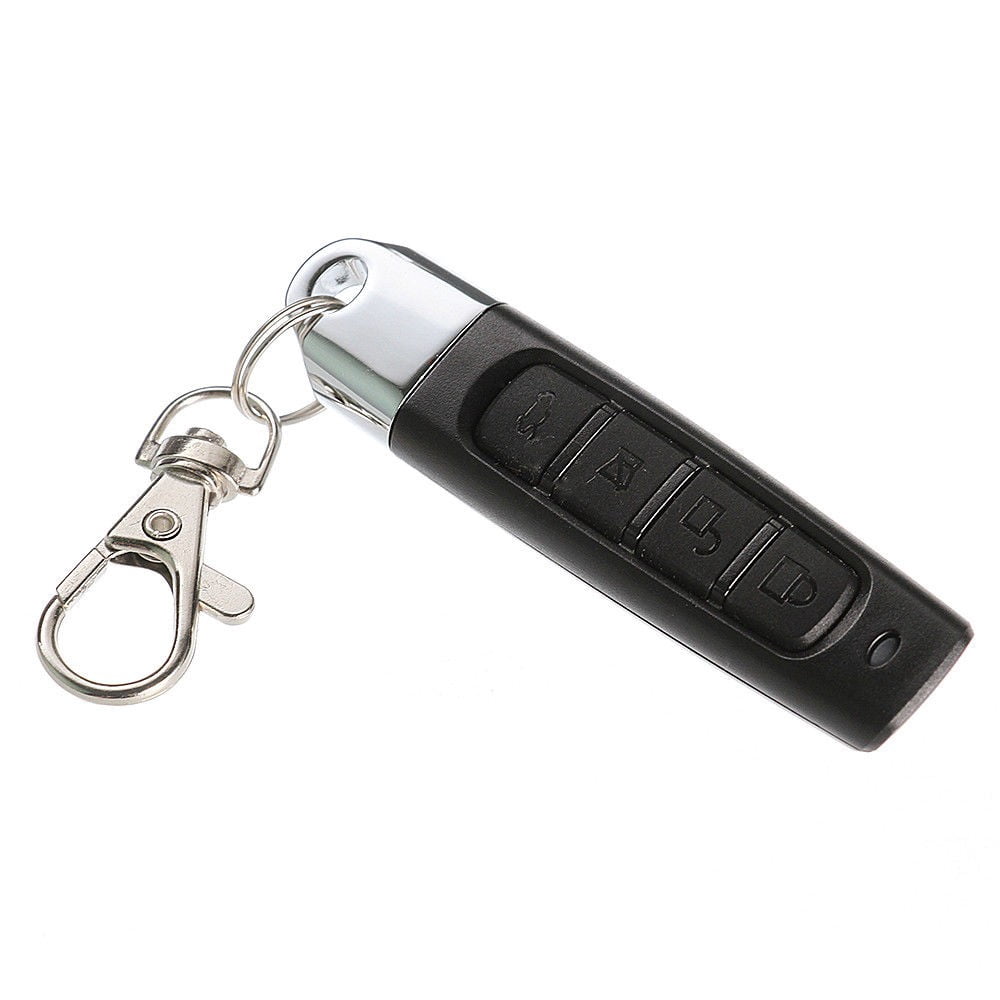

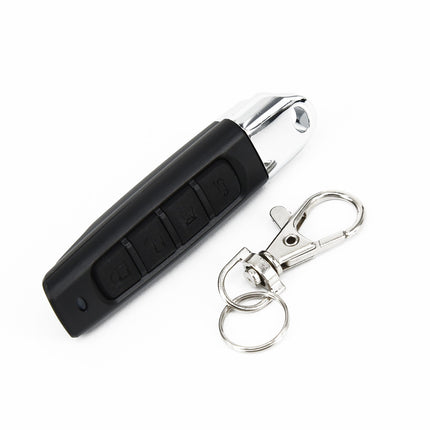

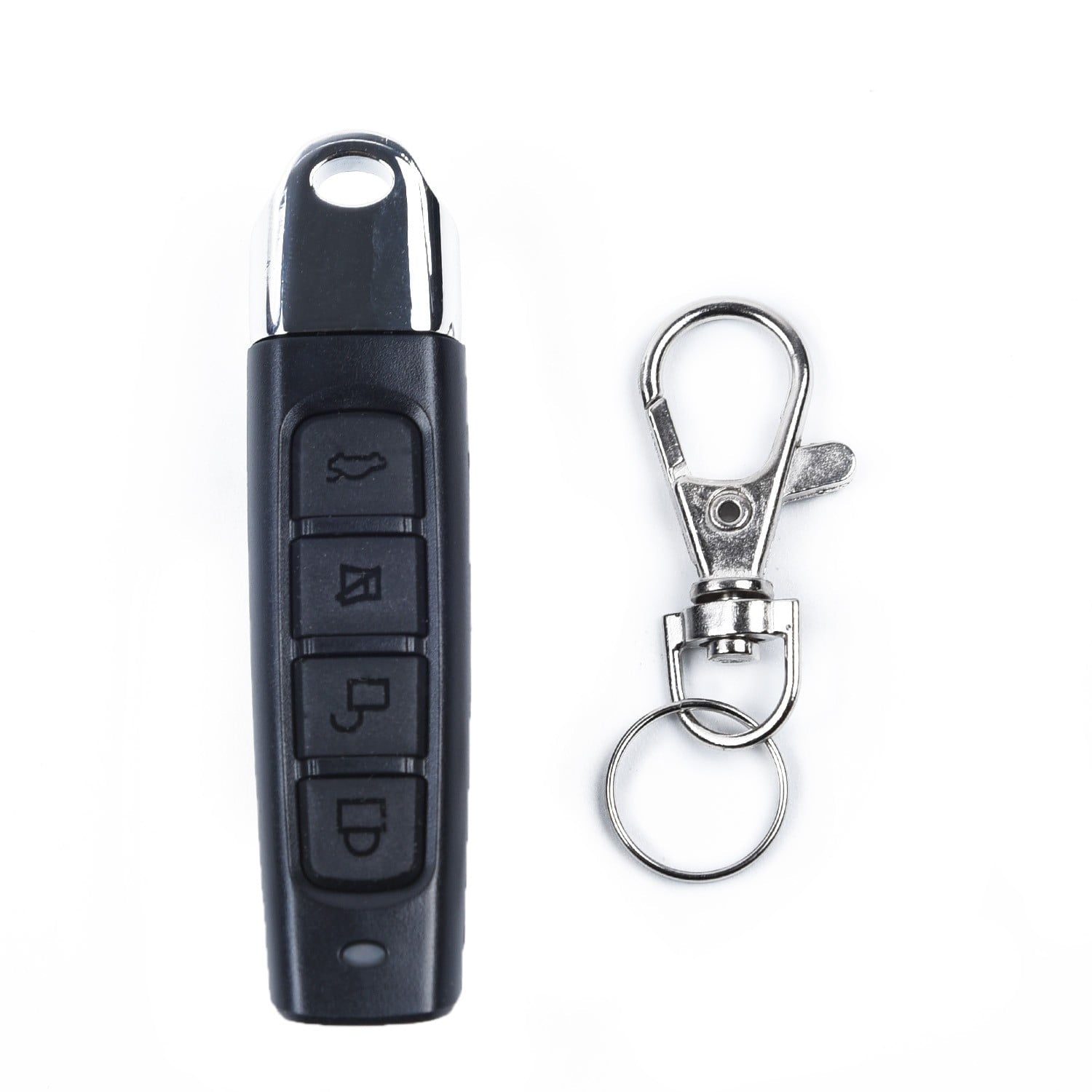

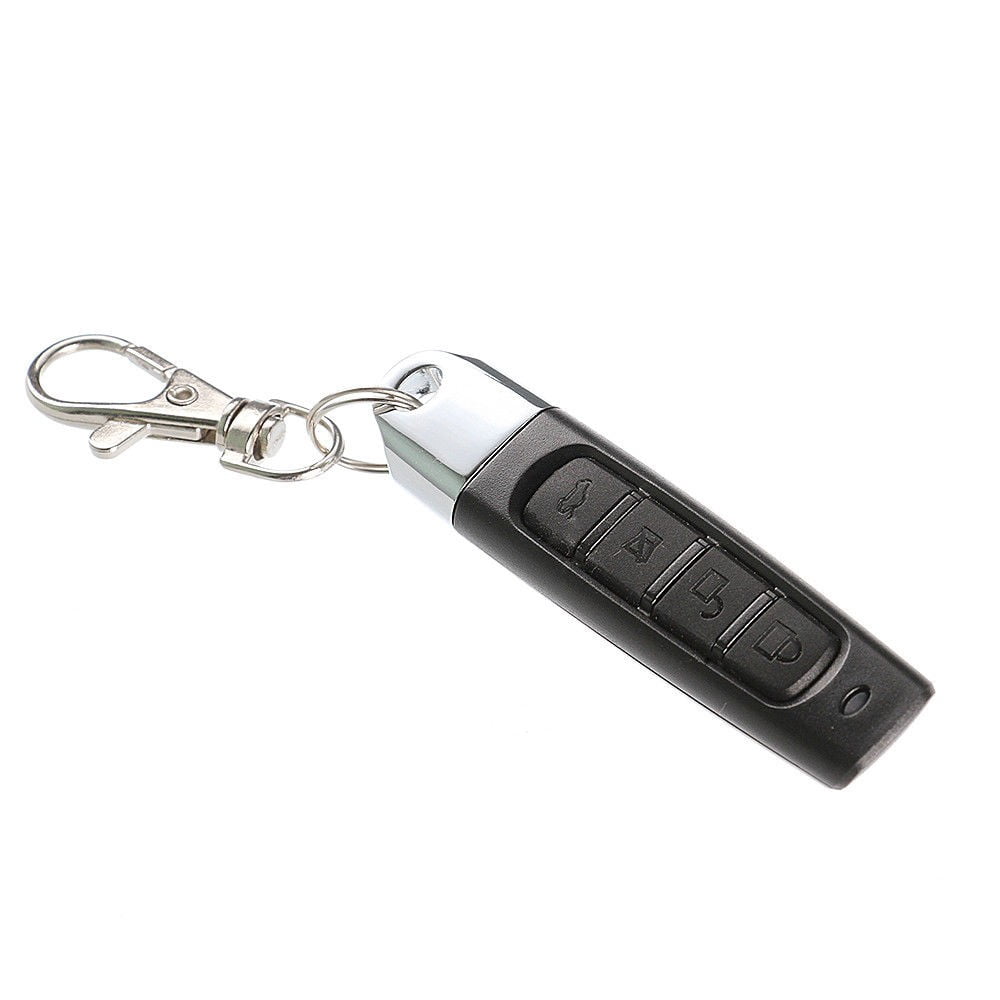

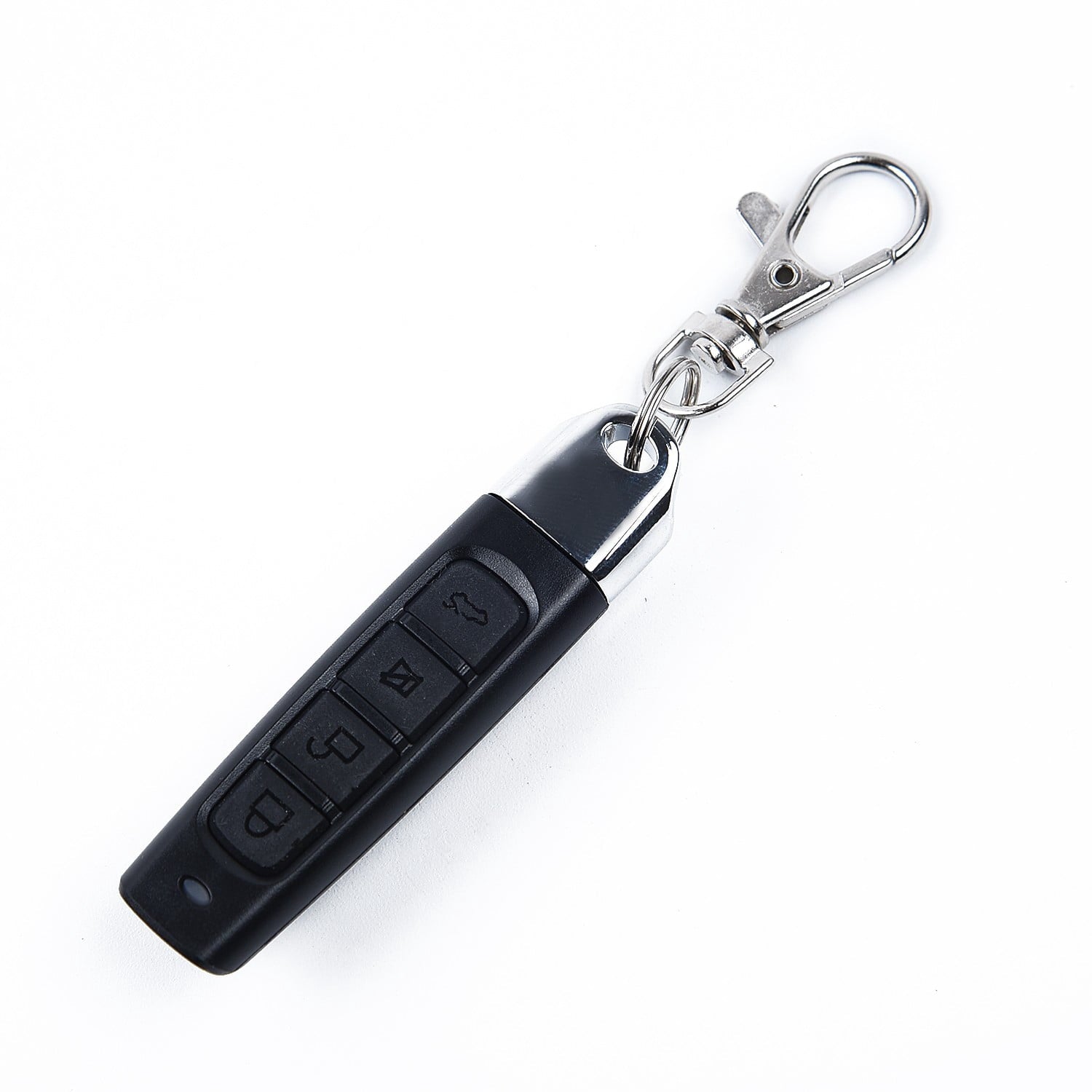

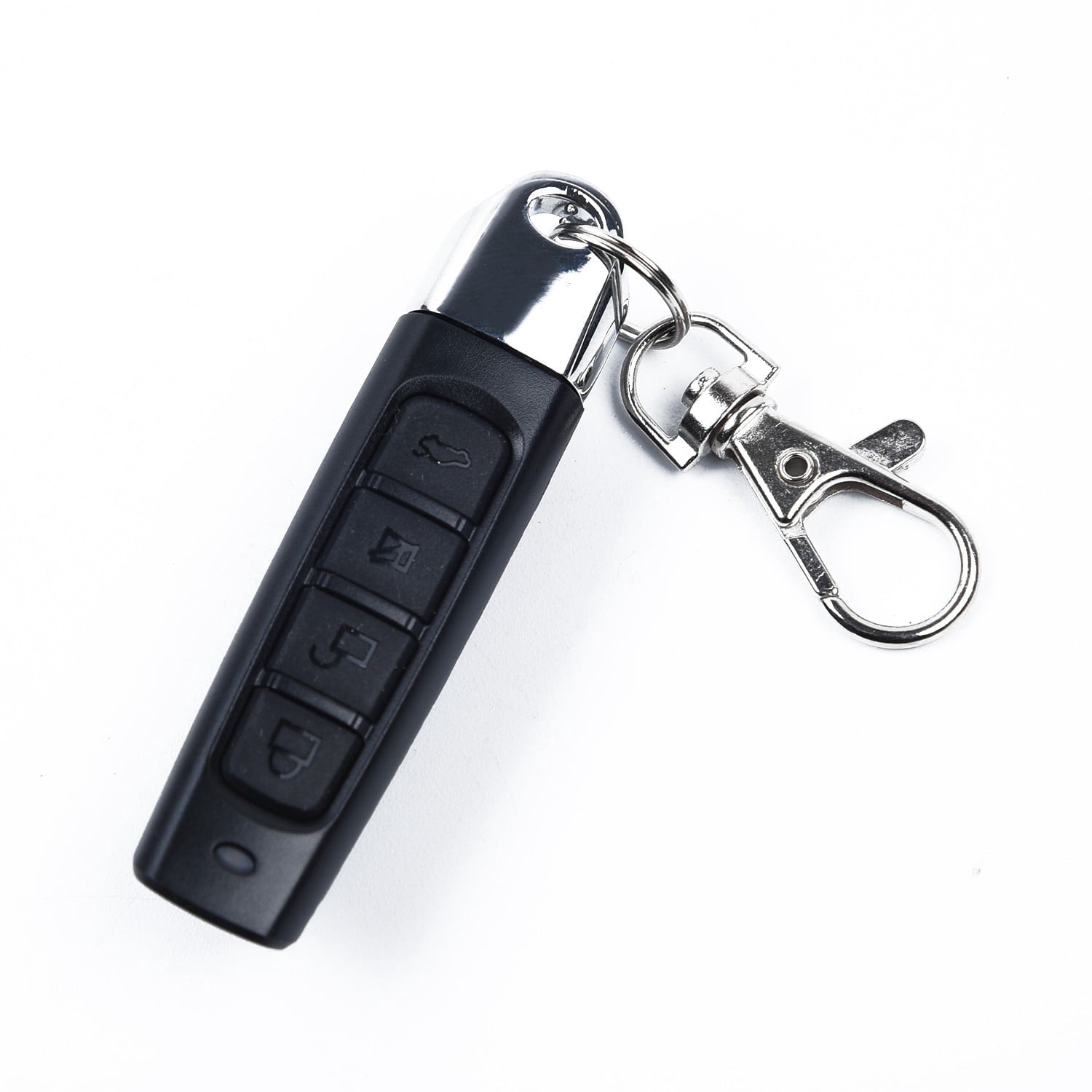

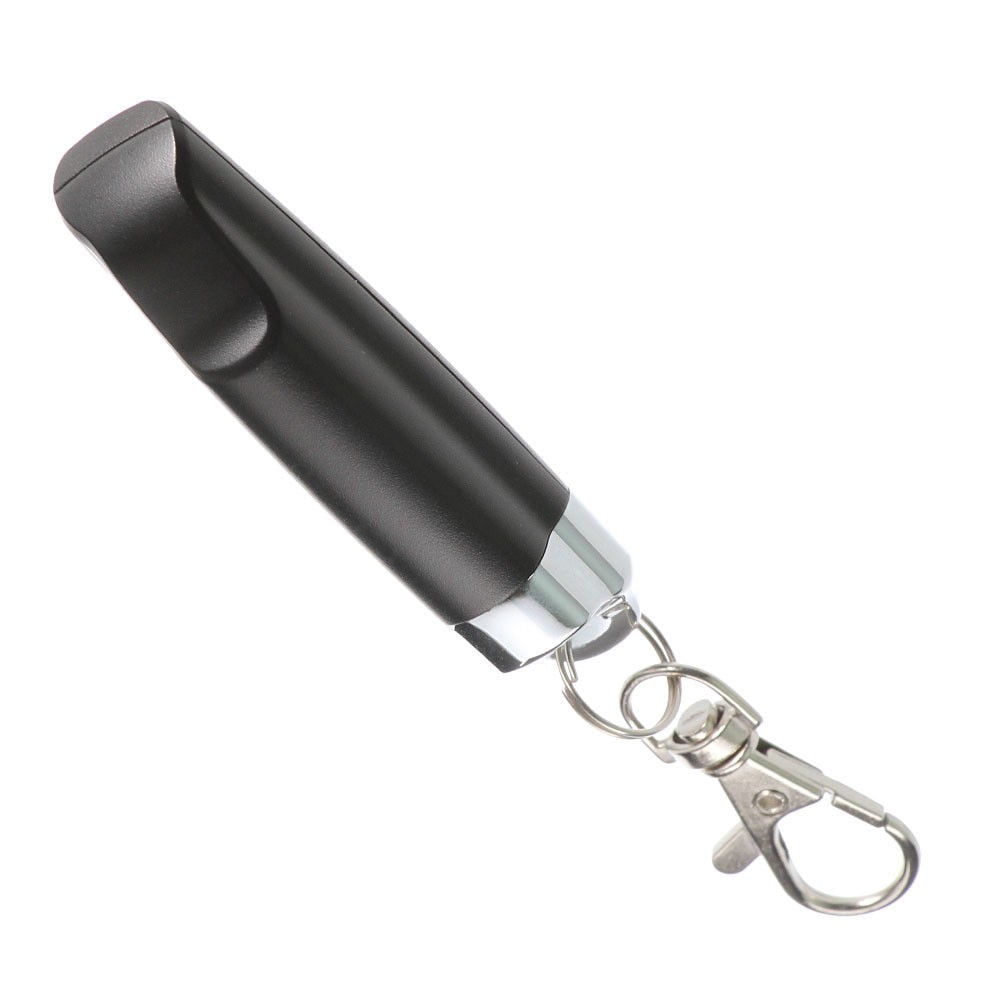

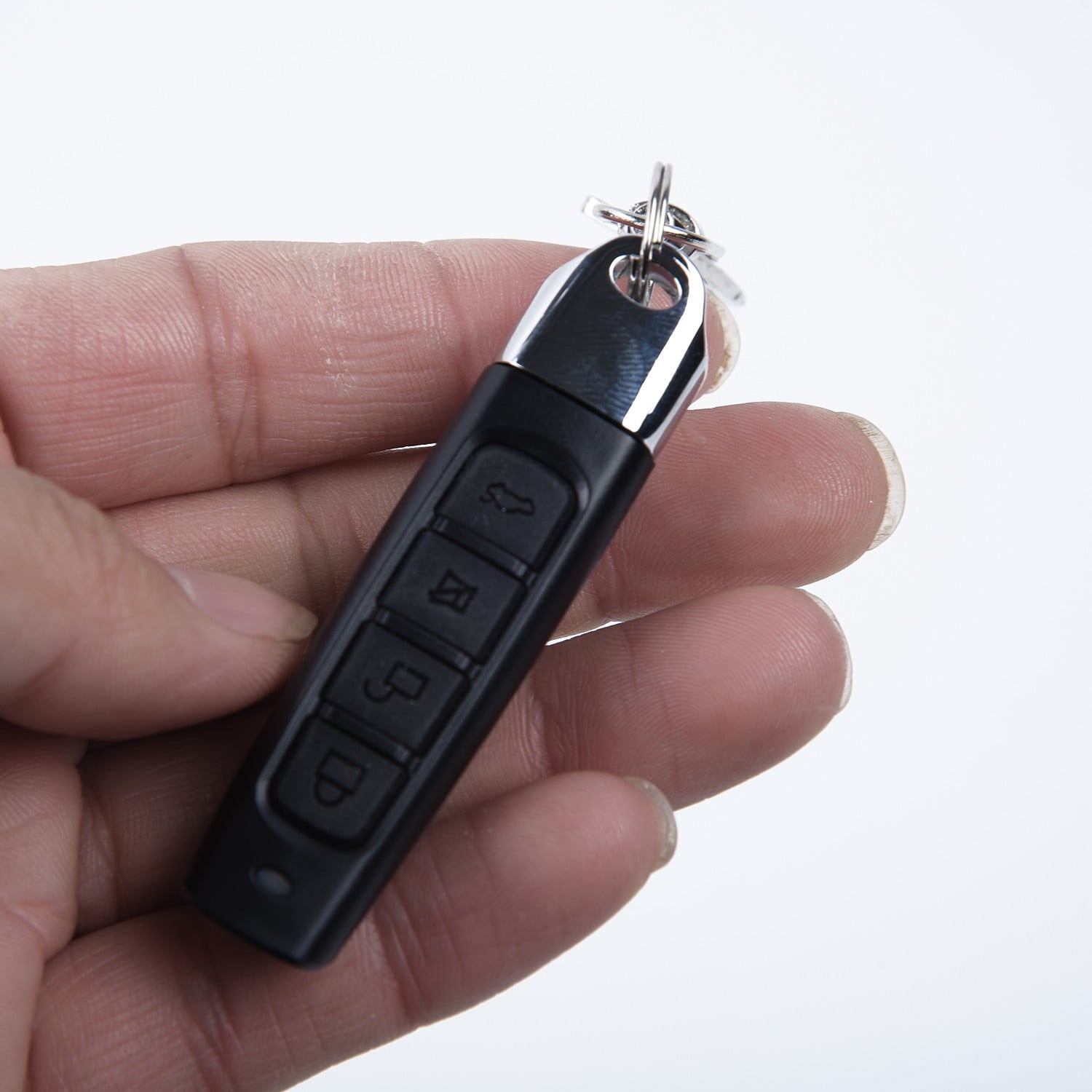

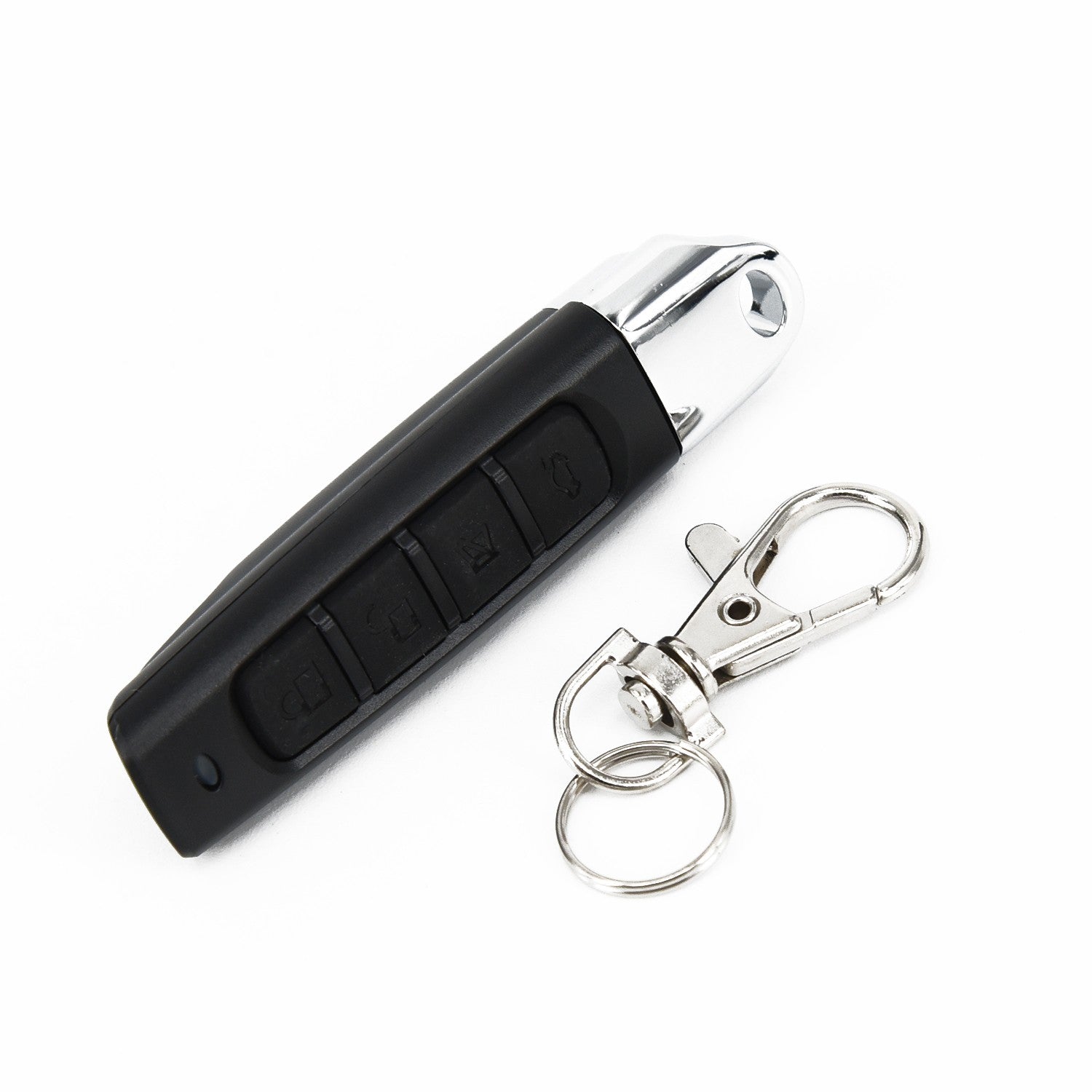

Color: Black+Sliver (As Pictures Show)

Type: Auto Remote Control Duplicator

Weight: 50g

Material: Metal+Plastic

Specifications:

Working voltage: DC12V(27A battery is not including)

Operating Current:≤ 8mA

Working frequency: 433MHz

Modulation Mode: ASK(AM)

The transmission power:≤ 100mW

Emission Distance: 100 m(proof)

The encoding type: self Copy

The working temperature:-10° C to+50° C

Works with the following remote control IC modules (please check your remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3. PT2262. PT2260. EV1527. FP527. PT2242. HT600. HT680. HT6207. HT6010. HT6012. HT6014. AX5326 4. SMC918. PT2240. HT6013. HT6013. HT12D,etc

Application: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

How to Program:

Step 1–delete the existing code of our remote duplicator

1)Click and Hold A and B buttons together- Led will flash 3 times

2)Keep holding A button and release B button

3)Keep holding A button and push B button 3 times, Led will start flashing Non-stop

Now press any key on the remote control, LED lights are not bright, so delete code success; if you press the button LED lamp is lit, indicating that the code is not deleted!

Step 2- clone your remote

1)Put both remotes Into back to Back position. Make sure they have direct-contact

2)Click and hold 1 button on your remote and 1 button on your clone remote. Keep holding until led will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned.( the left keys follow the same above)

If for some reason the clone does not go further then 2 blinks, it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.

Package Contents:

1 x Remote Control Duplicator

Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

• 【Easy Programming】To program the remote duplicator, simply delete the existing code by holding down the A and B buttons, and then follow the clone process by placing both remotes in a back-to-back position. Hold down the corresponding buttons on the original and clone remote until the LED blinks, indicating a successful cloning. It's a simple and straightforward process. • 【Wide Compatibility】This duplicator works with various remote control IC modules, such as AX5326-3, PT2262, EV1527, HT6010, and many more. It is compatible with garage doors, motorcycles, car alarm products, home security products, and other short-range wireless remote control products. Please ensure that your original remote control uses fixed code or learning code before ordering. • 【for durable and Lightweight】Made of metal and plastic materials, this remote control duplicator is lightweight (weighing only 50g), for durable, and easy to carry. It is designed for long-lasting use and can withstand daily wear and tear. • 【Convenient and Versatile】With this remote control duplicator, you can easily replace lost or damaged remotes for various devices. It provides a reliable and convenient solution for controlling multiple devices with a single remote, making it an essential tool for home and car security systems. • 【 Quality Assurance】We are committed to providing our customers with more reliable products and better customer service. If you have any questions about our products, please contact us by email and we will be happy to help you.
